1D 2D Million Barcode Scanner Module
|
Module Number |
WH-1037 |
Exposure |
Roller Shutter |
|
Resolution |
300Thousand 640*480pixels 60fps |
Working Voltage |
DC 5V |
|
Current |
150mA(Max) 90mA(working) 1mA(standby) |
Precision |
4mil |
Products Description
The WH-1037 barcode scanner module is designed for high-speed and accurate 1D/2D code reading. It uses a CMOS sensor with roller shutter exposure, delivering 60fps fast decoding and supporting 4mil minimum barcode density. With a powerful 1GHz 32-bit CPU, it processes data quickly and ensures stable scanning performance.
This module reads both paper and screen barcodes, adapting to low light and bright light conditions. It supports multiple interfaces including USB (HID/COM), RS232, and TTL, which makes integration flexible. The compact design with a large scanning window allows quick installation and space-saving use.
It also provides different trigger modes such as manual, auto-sensing, continuous, and host control. With strong durability, wide temperature tolerance, and reliable performance, the WH-1037 module is ideal for retail checkout systems, logistics tracking, and industrial automation.
Highlights
CMOS sensor with roller shutter ensures clear and stable barcode capture
Fast 60fps decoding with 4mil minimum density support
High-performance 1GHz 32-bit CPU enables ultra-fast data processing
Reads 1D and 2D barcodes from both paper and digital screens
Multi-interface support USB (HID/COM), RS232, TTL for easy integration
Specification
|
Reading performance |
Image Sensor |
CMOS |
|
Exposure |
Roller shutter |
|
|
Resolution |
300 thousand 640*480pixels 60fps |
|
|
Decoding capacity |
Support paper and screen barcodes |
|
|
2D: QR, MICROQR, PDF417, MICROPDF417, DATAMATRIX, MAXICODE, AZTEC, HANXIN etc. |
||
|
1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8,CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, |
||
|
Precision |
4mil |
|
|
View Angle |
76.7°(H) x53.4°(V) |
|
|
Motion Tolerance |
0.5meter per second |
|
|
Typical DOF |
15-90mm(5mil code39) 15-150mm(10mil code39) |
|
|
Mechanical and electrical |
WorkingVoltage |
DC 5V |
|
Current |
150mA(Max) 90mA(working) 1mA(standby) |
|
|
Environment Request |
Working Tem |
-30~65℃ |
|
Storage Tem |
-40~70℃ |
|
|
Humidity |
5%-95%(Non-condensing) |
|
|
Light Immunity |
0~100,000Lux |
|
|
Drop Test |
1.8M(6ft) |

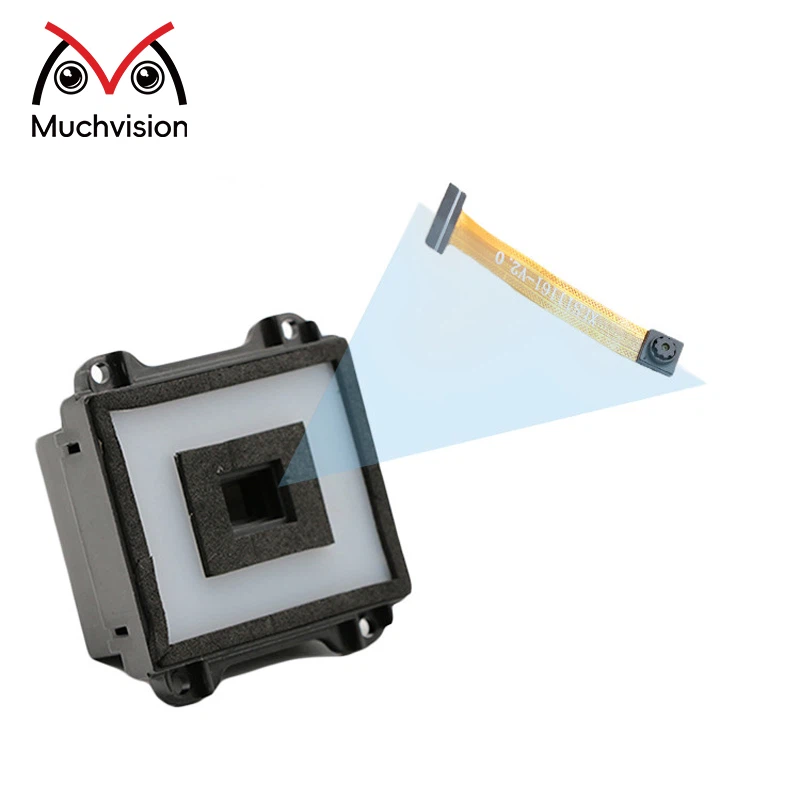

Product Picture
