Module Number |
SNS-SM1191-V1.0 |
Sensor |
1/2.6 Inch |
|
Resolution |
1920x1200 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
FF |
|
Interface |
USB2.0 |
Feature |
wide angle |

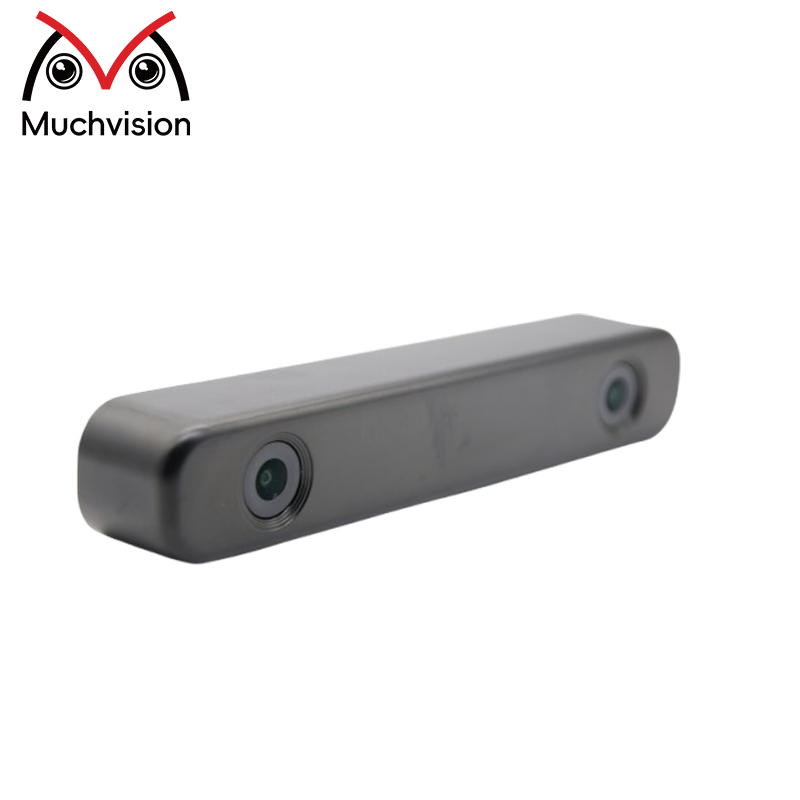

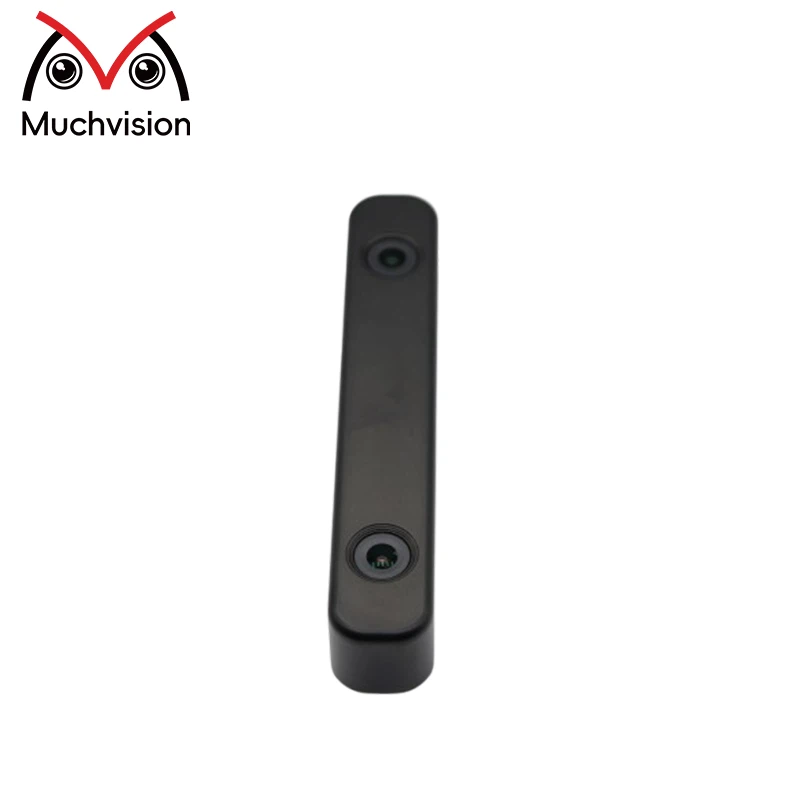

Products Description
This 2MP CMOS sensor is built for industrial vision and security applications, offering 1920x1200 resolution and 50fps performance. Its 1/2.6 inch optical format delivers clear, detailed images for both standard and low-light scenarios.
The sensor integrates USB2.0 and Type-C outputs with a 480MB/s transfer rate, supporting MJPG video and Raw Bayer 10-bit data. It is driver-free plug-and-play, ensuring quick deployment on Windows, Linux, Mac, and Android devices.
With a 115° wide angle lens and low distortion design, it covers more area with precision, making it suitable for inspection systems, surveillance cameras, access control, and video conferencing equipment.
Highlights
1920x1200 pixels, 2MP
50fps high frame rate
USB2.0 / Type-C connectivity
Low distortion, wide view

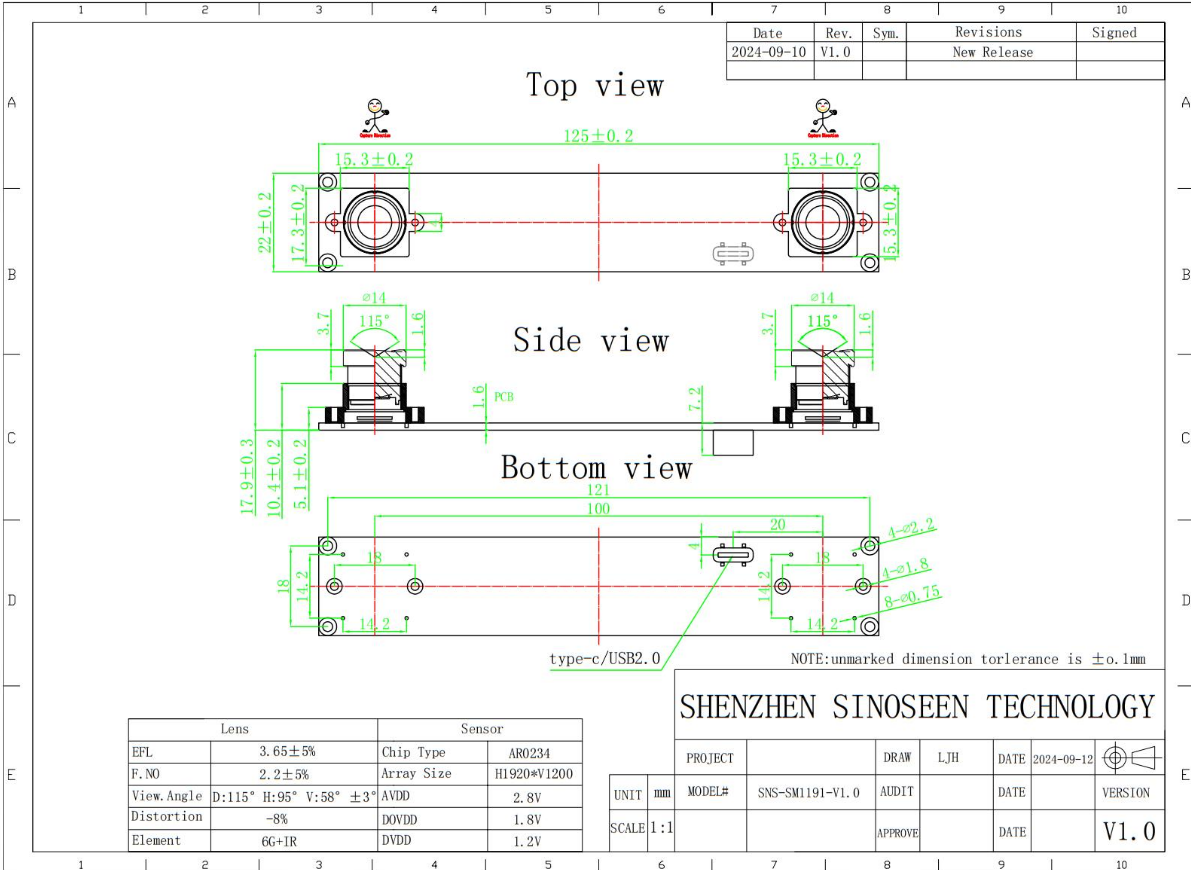

Structure diagram
parameter
|
Item |
Specification |
|
Model |
Signal SNS-SM1191-V1.0 |
|
Image Sensor Size |
1/2.6" inch |
|
Effective Pixels |
1920 × 1200 |
|
Pixel Size |
3.0 µm × 3.0 µm |
|
Image Sensor Data Output |
Raw Bayer 10 bits |
|
Video Output Format |
MJPG / YUY2 |
|
Maximum Resolution & Frame Rates |
- 3840 × 1200 @ MJPG → 50 FPS |
|
SNR (Max) |
TBD |
|
Dynamic Range |
TBD |
|
Minimum Illumination |
TBD |
|
Digital Interface |
Type-C / USB2.0 (1.5 m cable length) |
|
Transfer Rates |
480 MB/s |
|
Power Requirements |
5V ±5% |
|
Power Consumption |
NO LED / IR-LED / PCB printing ink black |
|
Storage Temperature |
-40°C ~ 70°C |
|
Operating Temperature |
-30°C ~ 60°C |
|
Operating System Support |
Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
|
Effective Focal Length (EFL) |
3.65 mm ±5% |
|
F/NO (Aperture) |
2.2 ±5% |
|
Field of View (FOV) |
D: 115° ±3° |
|
Optical Distortion |
-8% |
|
Lens Construction |
6G + IR |
|
Lens View (Default Lens) |
M12 × P0.5 |
|
Focus Type |
Fixed focus |
|
Shooting Distance |
60 cm ~ ∞ |
