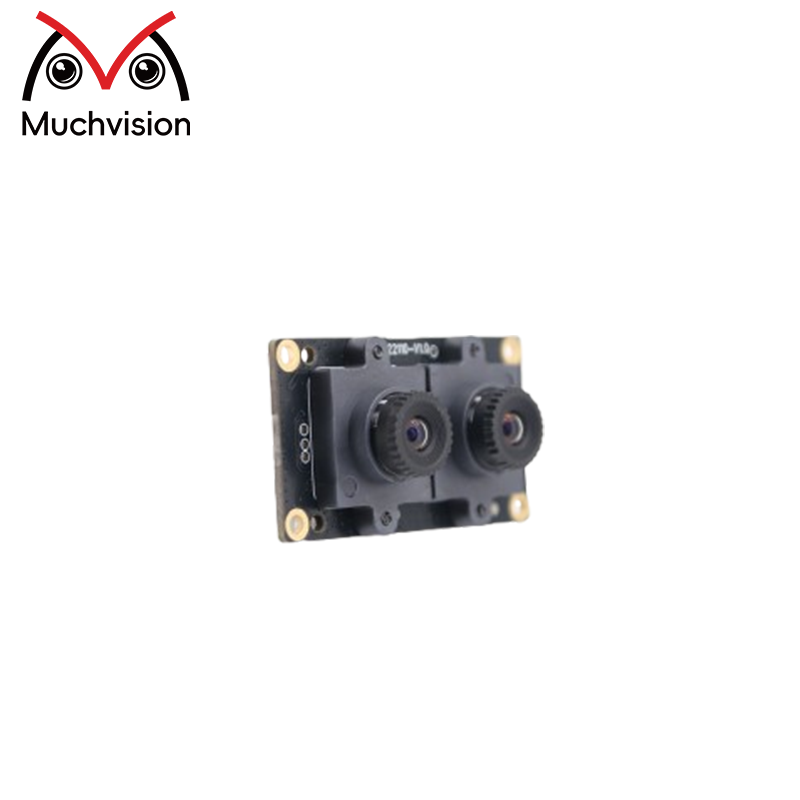

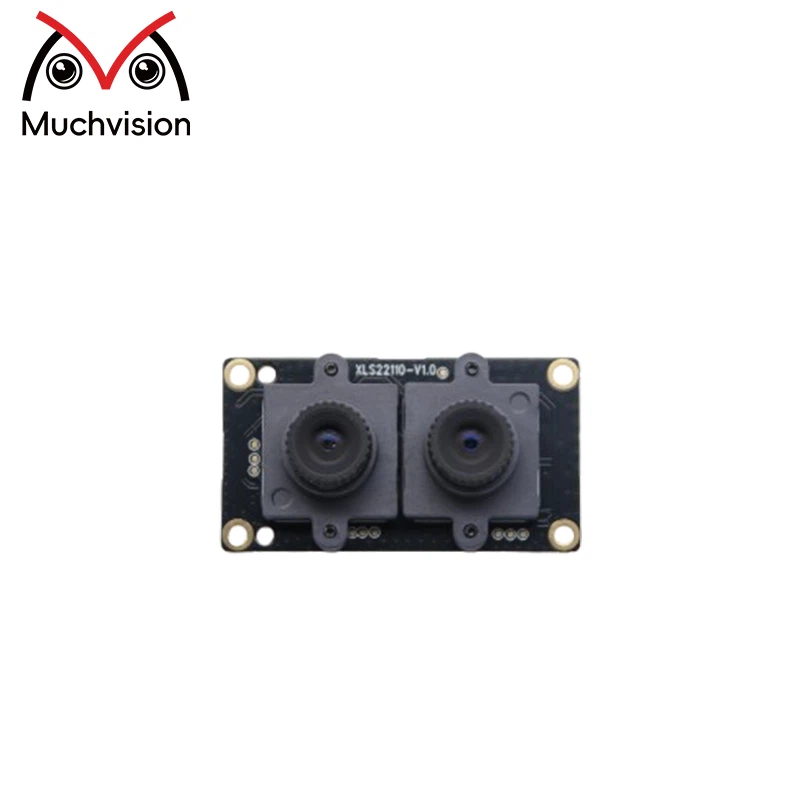

Module Number |
XLS22110-V1.0 |
Sensor |
OS02C10 |
|
Resolution |
1920x1080 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
FF |
|
Interface |
USB2.0 |
Feature |
HDR,Rolling Shutter |
Products Description
The OS02C10 sensor delivers 1080P full HD HDR video for mobile and consumer cameras. Its rolling shutter supports single, dual, and triple exposure HDR, capturing detailed images in bright or low-light.
Outputs include 16-bit combined RAW and 12-bit compressed RAW for high image quality. The sensor consumes 250 mW active, suitable for portable devices.
It features 4-lane MIPI CSI-2 and LVDS outputs and SCCB control, simplifying integration. Its 32,000 e/Lux-sec sensitivity ensures sharp, vivid images for photography and video.
Highlights
1080P HDR video with rolling shutter
Dynamic range over 120dB
Supports multiple exposure HDR modes
MIPI CSI-2 and LVDS outputs

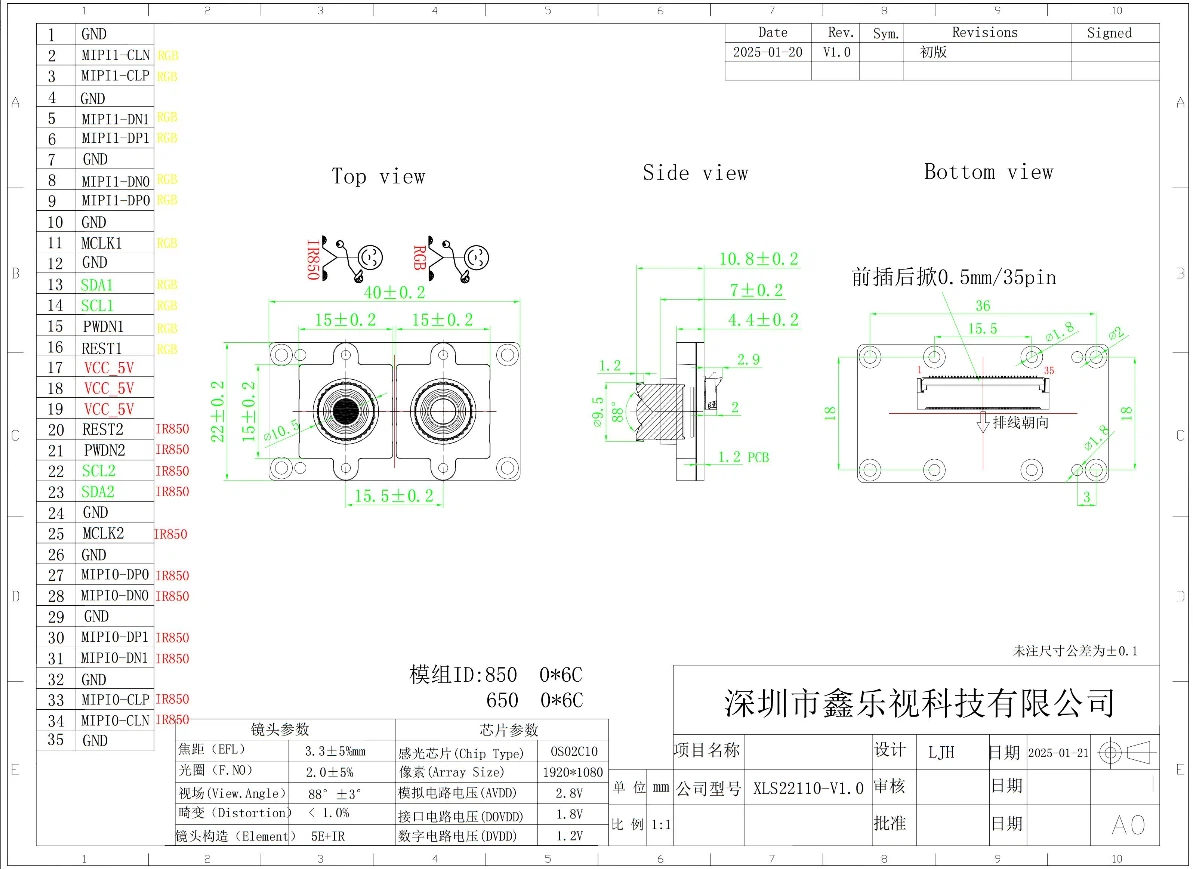

Structure diagram
parameter
|
Item |
Specification |
|
Active Array Size |
1920 × 1080 |
|
Output Formats |
- Single Exposure HDR: 16-bit |
|
Pixel Size |
2.9 µm × 2.9 µm |
|
Image Array Area |
5614.4 µm × 3178.4 µm |
|
Lens Size |
1/2.8" |
|
Lens Chief Ray Angle (CRA) |
See Figure 10-3 |
|
Shutter Type |
Rolling Shutter |
|
Scan Mode |
Progressive |
|
Maximum Frame Rate |
- 40 × 3 FPS @ 1080p in 10-bit |
|
Maximum SNR |
40.8 dB |
|
Dynamic Range |
>120 dB (DCG + VS staggered HDR and 3-exposure staggered HDR) |
|
Sensitivity |
32,000 e⁻/Lux-sec (green pixel response @ 530 nm illumination) |
|
Input Clock Frequency |
6 ~ 36 MHz |
|
Power Supply |
- Analog: 2.8V |
|
Power Consumption |
250 mW (active) |
|
Output Interfaces |
Up to 4-lane MIPI CSI-2 or LVDS |
|
SCCB Speed |
Up to 1 MHz |
|
Package Dimensions |
8903 µm × 7100 µm |
