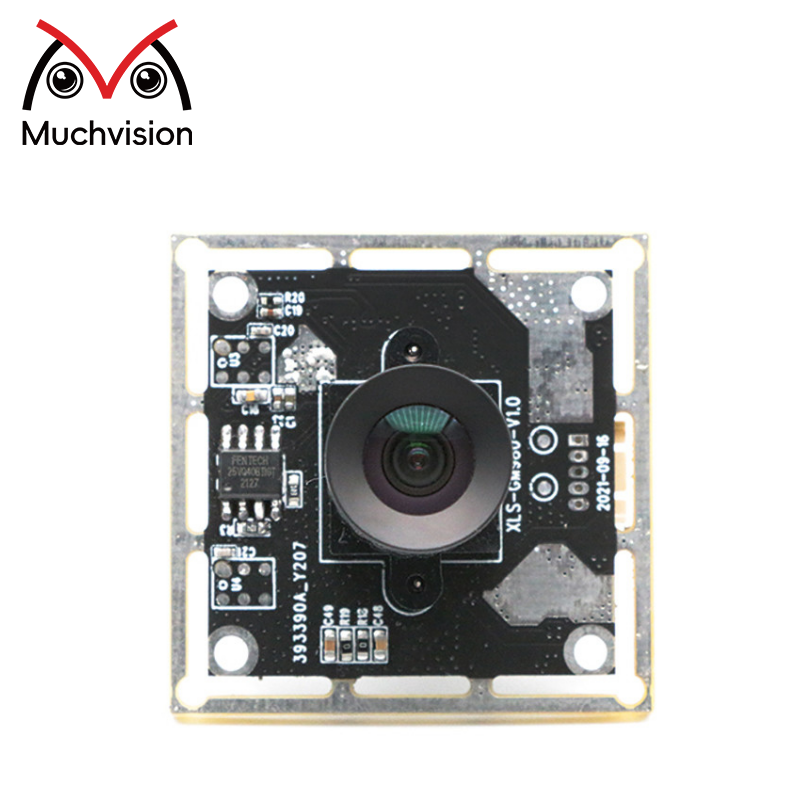

Fixed Focus 5MP USB Camera Module PS5520
|
Module Number |
SNS-GM980-V1.0 |
Sensor |
1/2.5 PS5520 |
|
Resolution |
HD 2592(H)X1944(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HD |
Products Description
The 5MP USB camera module with PS5520 sensor provides high-definition video at 2592x1944 resolution. Its fisheye lens delivers a wide viewing angle, making it suitable for large-area coverage in security monitoring and panoramic applications.
Optimized for outdoor use, the module supports anti-glare and anti-backlight functions to maintain clear images under complex lighting conditions. The fixed focal length lens ensures stable imaging, and the USB 2.0 interface allows plug-and-play connectivity across multiple operating systems. Typical applications include HD CCTV cameras, security network cameras, 360° panoramic cameras, sports DVs, car video recorders, and video intercom systems.
Highlights
5MP HD Imaging: High-resolution 2592x1944 video for detailed images.
Fisheye Lens Design: Wide viewing angle suitable for large-scale monitoring.
Outdoor Optimization: Anti-glare and anti-backlight performance in varied lighting.
USB 2.0 Plug and Play: Easy connection and broad system compatibility.
Fixed Focus Lens: Stable imaging without manual adjustment.
Specification
|
Model No |
SNS-GM980-V1.0 |
|
Sensor |
1/2.5 PS5520 |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592 (H) x 1944 (V) |
|
Pixel Size |
2.20um (H) x 2.20um (V) |
|
Image area |
3673.6μm x 2738.4μm |
|
Compression format |
YUYV/MJPEG |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Object distance |
5CM-infinity |
|
S/N ratio |
39dB |
|
Dynamic range |
85dB |
|
Sensitivity |
600mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Operating temperature |
-30 oC ~75 oC |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
