Module Number |
SNS-DZ1218-V1.0 |
Sensor |
OV9782 |
|
Resolution |
1280*800 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
FF |
|
Interface |
USB2.0 |
Feature |
high frame rate,720P |
Products Description

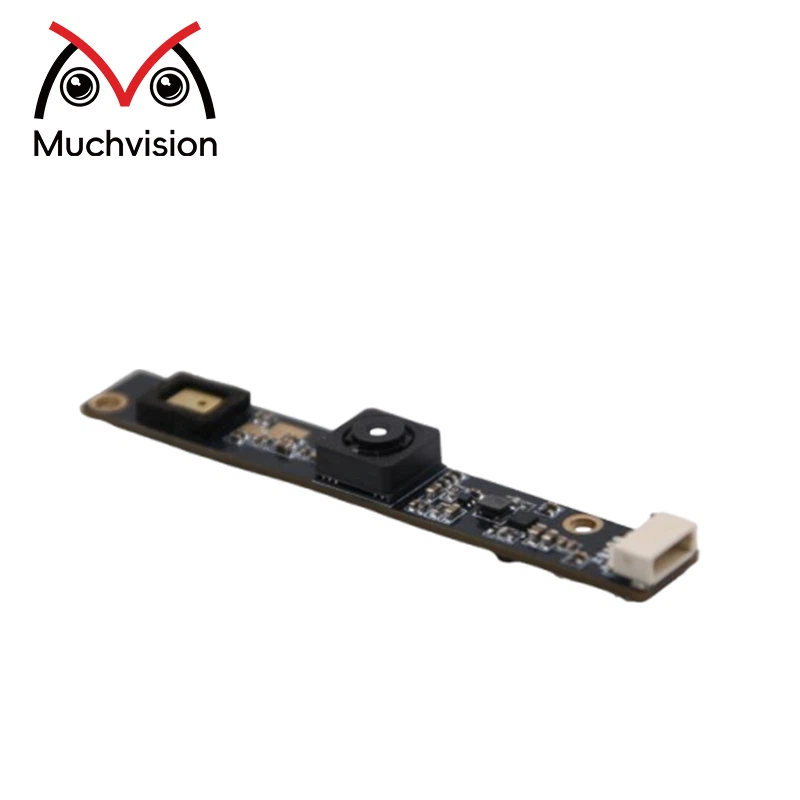

The SNS-DZ1218-V1.0 camera module integrates the OV9782 720P CMOS sensor with a USB2.0 interface, enabling 1280×800 resolution at up to 120fps (MJPG). It supports multiple video formats including RAW10, MJPG, YUY2, ensuring high compatibility for imaging applications.
Designed for plug-and-play UVC operation, it works seamlessly across Windows, Linux, Android, and Mac OS without additional drivers. With low power consumption, compact dimensions, and 5P optical lens (F/2.2, 68° FOV), the module is optimized for machine vision, barcode scanning, gesture recognition, face detection, and 3D applications.
Highlights
OV9782 720P CMOS sensor with 1280×800 resolution
120fps high frame rate (MJPG) for smooth and accurate capture
USB2.0 plug & play with UVC standard (no driver required)
Cross-platform compatibility: Windows, Linux, Android, Mac OS
Structure diagram
parameter
|
Image Sensor |
Sensor Size |
1/4" CMOS |
|
Effective Pixels |
1280 × 800 |
|
|
Pixel Size |
3.0 μm × 3.0 μm |
|
|
Data Output |
RAW Data 10 bits |
|
|
Video Output |
MJPG, YUY2 |
|
|
Max Frame Rates |
1280 × 800 |
MJPG: 120 FPS / YUY2: 10 FPS |
|
1280 × 720 |
MJPG: 120 FPS / YUY2: 10 FPS |
|
|
1024 × 768 |
MJPG: 120 FPS / YUY2: 10 FPS |
|
|
800 × 600 |
MJPG: 120 FPS / YUY2: 20 FPS |
|
|
640 × 480 |
MJPG: 120 FPS / YUY2: 30 FPS |
|
|
320 × 240 |
MJPG: 120 FPS / YUY2: 120 FPS |
|
|
160 × 120 |
MJPG: 120 FPS / YUY2: 120 FPS |
|
|
Image Performance |
SNR (max) |
38 dB |
|
Dynamic Range |
68 dB |
|
|
Min. Illumination |
TBD |
|
|
Interface & Transfer |
Digital Interface |
5-pin, 1.0 mm, USB 2.0 |
|
Transfer Rate |
480 MB/s |
|
|
Power & Environment |
Power Requirement |
5V ±5% |
|
Power Consumption |
No LED / IR-LED |
|
|
Storage Temperature |
-40℃ ~ 70℃ |
|
|
Operating Temperature |
-30℃ ~ 60℃ |
|
|
PCB Ink Color |
Black |
|
|
OS Compatibility |
Windows |
XP / Vista / 7 / 8.1 / 10 |
|
Mac OS |
Supported |
|
|
Android |
Supported |
|
|
Linux |
2.6.2+ (UVC supported) |
|
|
Optical Parameters |
EFL (Effective Focal Length) |
3.4 mm ±5% |
|
F/NO (Aperture) |
2.2 ±5% |
|
|
FOV (Field of View) |
D: 68° / H: 59° / V: 39° ±3° |
|
|
Optical Distortion |
< 1.5% |
|
|
Lens Construction |
5P |
|
|
Lens Screw |
M6.5 × P0.25 |
|
|
Focus Distance |
60 cm ~ ∞ |
