Module Number |
SNS-DZ1225-V1.0 |
Sensor |
1/2.65"inch |
|
Resolution |
2960 × 1666 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
FF |
|
Interface |
USB2.0 |
Feature |
plug-and-play |

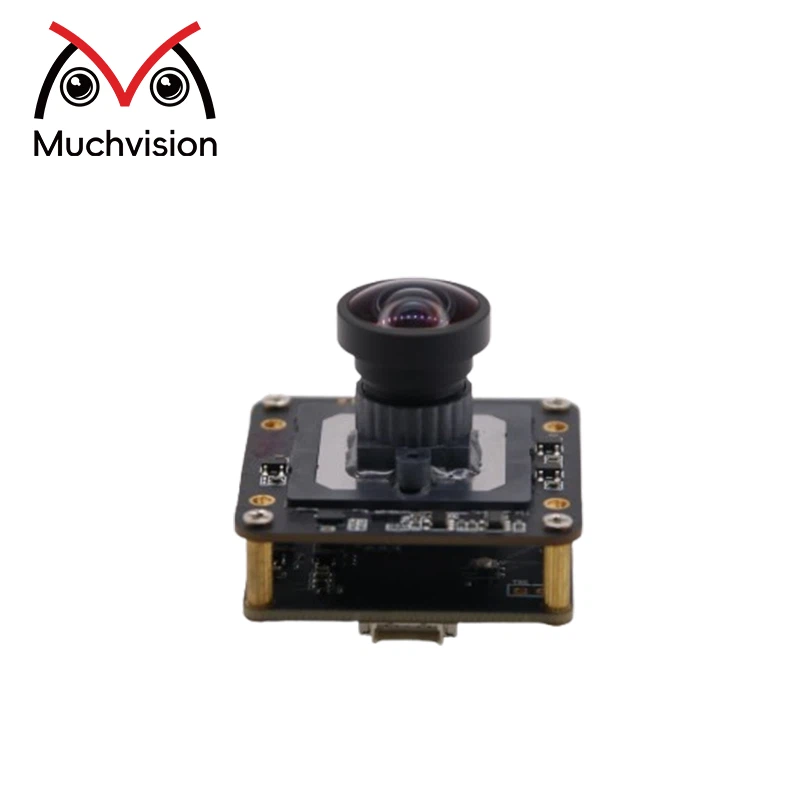

Products Description
Looking for a USB camera module that balances performance, flexibility, and cost-efficiency? The SNS-DZ1225-V1.0 is built with a 2.96MP CMOS sensor, offering Full HD+ streaming at 30fps. Its optical image stabilization and superior low-light performance ensure consistent image quality, while the USB2.0 high-speed interface provides smooth real-time data transfer. With broad OS compatibility and a compact design, it is a ready-to-use solution for modern imaging applications.
Highlights
High-definition 2.96MP sensor with 2960×1666 resolution at 30fps
Optical Image Stabilization (OIS) for smooth and stable imaging
Multiple output formats: RAW10, MJPG, YUY2
Plug-and-play USB2.0 interface, driver-free, cross-platform compatible
Structure diagram
parameter
|
Parameter |
Specification |
Remarks |
|
Module # |
SNS-DZ1225-V1.0 |
– |
|
Image Sensor Size |
1/2.65" CMOS |
– |
|
Effective Pixels |
2960 × 1666 |
~2.96MP |
|
Pixel Size |
2.0µm × 2.0µm |
– |
|
Output Format |
RAW 10-bit, MJPG, YUY2 |
– |
|
Max Frame Rate |
30fps @ all supported resolutions |
– |
|
Supported Resolutions |
2944×1656 / 2048×1536 / 1920×1080 / 1600×1200 / 1280×960 / 1280×720 / 800×600 / 640×480 |
MJPG |
|
SNR (max) |
35dB |
– |
|
Dynamic Range |
81.5dB |
– |
|
Min. Illumination |
TBD |
– |
|
Interface |
USB2.0 (5pin, 1.25mm) |
– |
|
Transfer Rate |
480Mbps |
– |
|
Power Supply |
5V ±5% |
– |
|
Power Consumption |
TBD |
No LED / IR-LED optional |
|
Operating Temp. |
-30℃ to +60℃ |
– |
|
Storage Temp. |
-40℃ to +70℃ |
– |
|
Lens |
EFL 2.8mm ±5%, F/NO 2.4 ±5%, FOV D:108° / H:97° / V:67° ±3° |
4G2P+IR, M12*P0.5 |
|
Optical Distortion |
< -1% |
– |
|
Focus Distance |
60cm – ∞ |
– |
|
PCB Ink |
Black |
– |
|
OS Support |
Windows XP/Vista/7/8.1/10, Mac, Android, Linux (UVC) |
Plug & Play |
