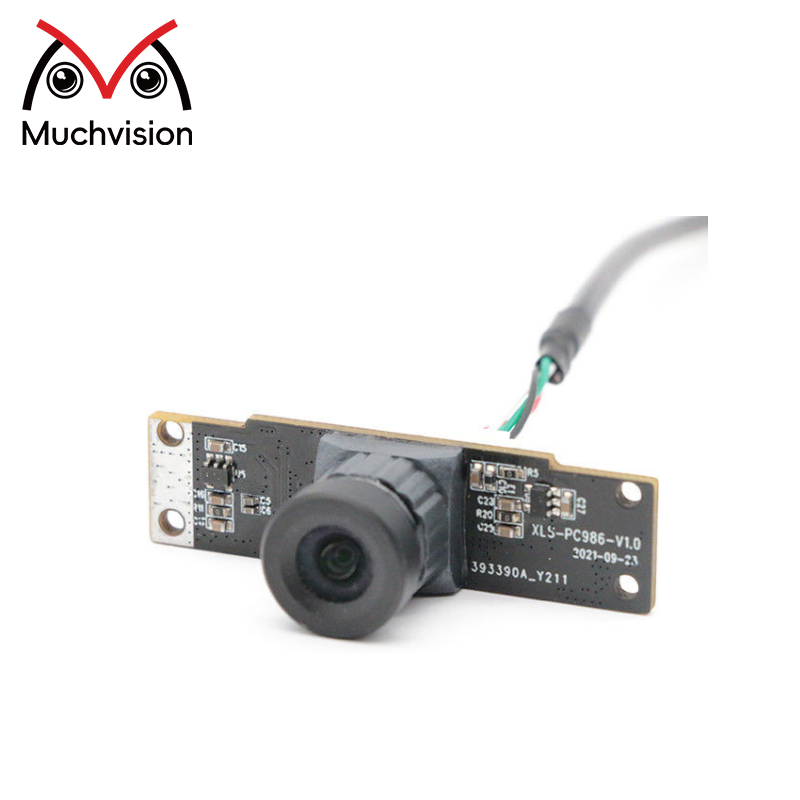

2MP USB 3.0 Camera Module PS5268 Sensor 1080P
|
Module Number |
SNS-2MP-PS5268-A78 |
Sensor |
1/2.7 PS5268 |
|
Resolution |
2MP 1928(H) X 1088(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB3.0 |
Feature |
Full-HD,HDR |
Products Description
This newly developed USB3.0 camera module is equipped with the PS5268 sensor. Its core advantage lies in its HDR high dynamic range and high-speed imaging capabilities. The module can effectively capture clear and balanced image details in complex lighting environments while avoiding overexposure or underexposure.
The module supports two working modes: standard mode can achieve smooth video at 1080P resolution at 60 frames per second, while in HDR mode it can be stabilized at 30 frames per second, which allows it to meet the requirements of dynamic image capture and high image quality at the same time. The USB 3.0 interface ensures high-speed data transmission and ensures the stability of real-time video streaming. With its fixed focal length design and customizable size, the module can be widely used in fields with high performance requirements such as face recognition, security monitoring, and vehicle recorders.
Highlights
HDR high dynamic range: effectively cope with scenes with large light contrast and provide better image quality.
USB 3.0 high-speed interface: ensure stable transmission of high-resolution and high-frame-rate videos.
Dual-mode frame rate: flexible choice between 1080P@60FPS and HDR@30FPS.
High sensitivity: good imaging performance even in low-light environments.
Specification
|
Model No |
SNS-2MP-PS5268-A78 |
|
SENSOR |
PS5268 |
|
Active array size |
1928(H) x 1088(V) |
|
Pixel size |
3.0um (H) x 3.0um (V) |
|
Shutter type |
Electronic rolling shutter (ERS) |
|
Optical format |
1/2.7-inch |
|
Lens chief ray angle |
17 degree |
|
ADC |
10-bit |
|
Sensitivity |
5800 mV/Lux-sec |
|
SNRmax |
41 dB |
|
Dynamic range |
85 dB |
|
Scan mode |
Progressive scan |
|
Input clock |
Max 50MHz |
|
Pixel clock |
Max 148.5MHz |
|
Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
|
Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
|
Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
|
Operating temperature |
-30°C ~ 85°C |
