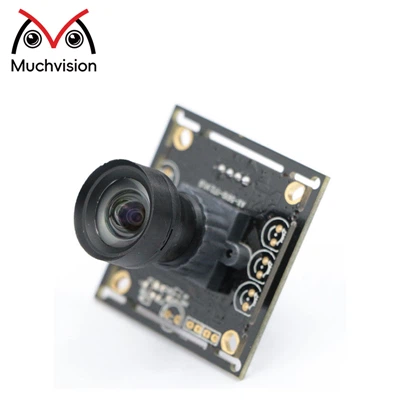

Black White Omnivision OV7251 Camera Module 0.3MP USB2.0
|
Module Number |
SNS-GB3403M-V1 |
Sensor |
1/7.5" Omnivision OV7251 |
|
Resolution |
0.3MP 640(H) X 480(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Global Shutter |
Products Description
The SNS-GB3403M-V1 is a USB camera module with a 1/7.5-inch Omnivision OV7251 sensor, outputting 0.3MP monochrome images at 640x480 resolution.
It uses global shutter technology to expose all pixels simultaneously, eliminating motion blur and jello effect. This ensures accurate and distortion-free frames even when capturing fast-moving objects.
The module supports a high frame rate up to 120FPS at VGA and lower resolutions, providing excellent real-time performance for industrial automation, machine vision, and high-precision imaging.
It connects via USB2.0, supports UVC plug-and-play, and is compatible with Windows, Linux, macOS, and Android.
Highlights
Omnivision OV7251 global shutter sensor.
0.3MP (640x480) monochrome (black and white) image.
High frame rate: 120FPS@640x480 and lower resolution.
USB2.0 interface, UVC compatible, plug and play.
Specification
|
Model No |
SNS-GB3403M-V1 |
|
Sensor |
1/7.5'' Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480 @ 120 fps 320x240@ 120fps 320x120 @ 120fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
Lens Size: 1/4 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (customizable) |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
