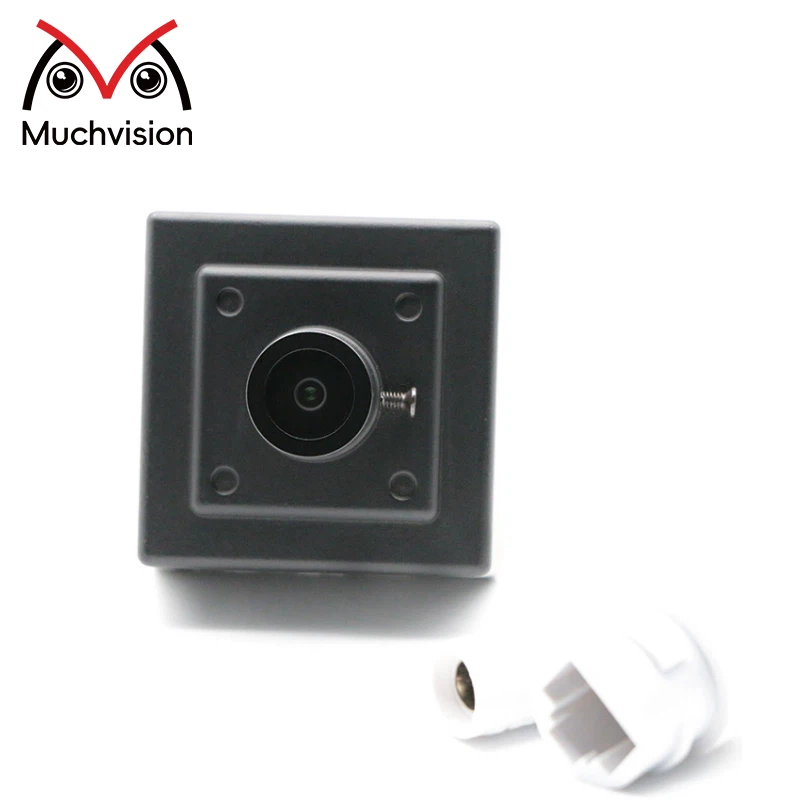

GC2053 USB2.0 2MP Camera Module 1920x1080P
|
Module Number |
SNS-GC2053-V1.0 |
Sensor |
1/2.9'GC2053 CMOS |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HDR |
Products Description
The GC2053 2MP 1080P USB2.0 camera module is a high-definition imaging solution designed for versatile applications including security monitoring, automotive recorders, network cameras, and video conferencing devices. Equipped with a 1/2.9" GC2053 CMOS sensor, it outputs stable Full HD 1080P video while maintaining low power consumption, making it suitable for embedded designs.
Its fixed-focus lens and customizable dimensions simplify integration, while the standard USB2.0 interface provides plug-and-play connectivity with computers and various host devices. Programmable parameters such as brightness, contrast, color saturation, hue, gamma, white balance, and exposure allow developers to tailor image performance to specific needs.
Highlights
High integration and low power: Compact design with reliable performance
1080P Full HD output: Stable and clear imaging for a variety of applications
USB2.0 interface: Easy plug-and-play connection across multiple platforms
Fixed-focus lens: Simplifies installation and maintains consistent image quality
Customizable dimensions: Flexible integration for embedded systems
Specification
|
Model No |
SNS-GC2053-V1.0 |
|
Sensor |
1/2.9'GC2053 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.8um x2.8um |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
