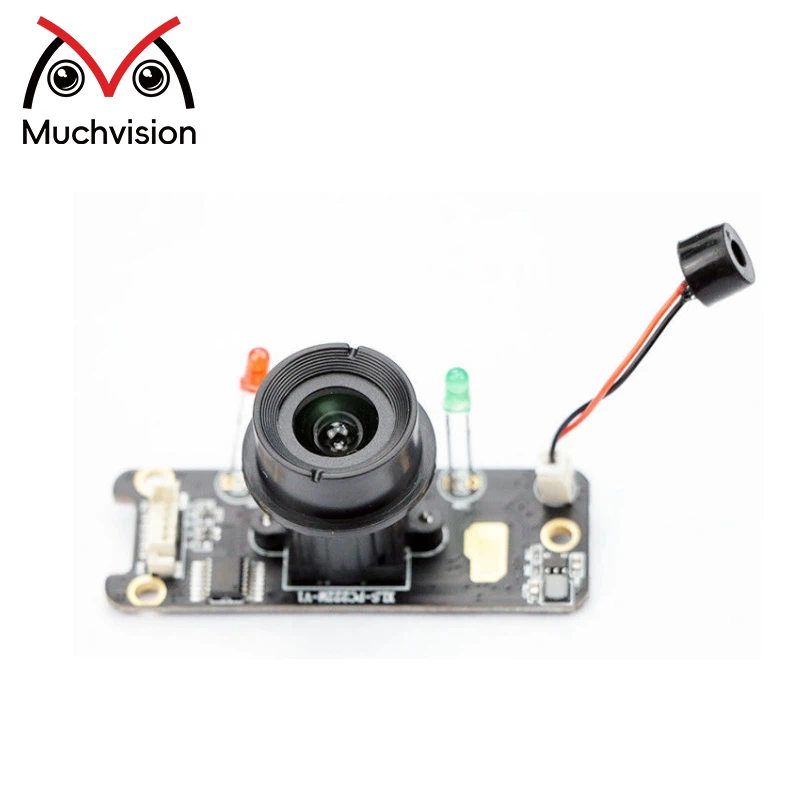

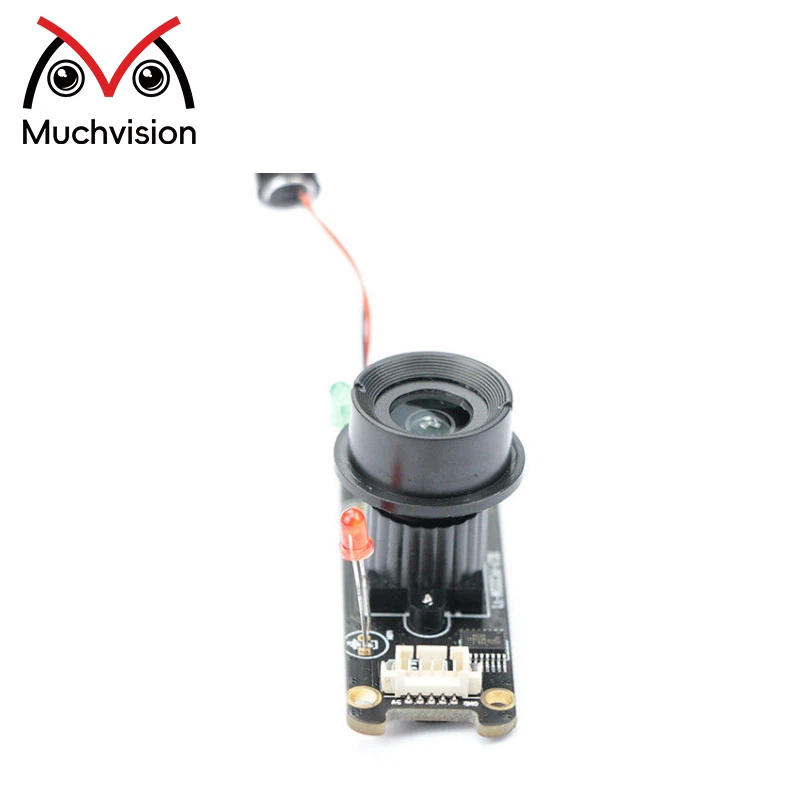

OV2710 Ip Camera Module Infrared IR CUT 2MP 1080p
|
Module Number |
SNS-2MP-OV2710-V1.0 |
Sensor |
Omnivision OV2710 |
|
Resolution |
2MP (1920*1080) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Wifi,Night Vision |
Products Description
The OV2710 IP camera module is a reliable solution for 24/7 surveillance. During the day, it captures vivid full-color video. At night, it automatically activates the IR-cut filter and infrared LED, switching seamlessly to black-and-white IR imaging without manual adjustment.
Equipped with the Omnivision OV2710 CMOS sensor, this module delivers 2MP (1920x1080) resolution with strong low-light sensitivity and wide dynamic range. It is designed with a slim 55mm x 19mm profile, making it well-suited for compact devices such as video doorbells, smart home security systems, and portable monitoring equipment.
The module connects via USB2.0 for easy plug-and-play integration. It also supports multiple adjustable parameters including brightness, contrast, white balance, and exposure, providing flexibility for different applications.
Highlights
Day/Night Vision: Automatic switching between color and infrared modes
1080p HD Video: Clear 2MP resolution for surveillance and monitoring
IR Cut Filter: Built-in 850nm filter for true night vision imaging
Slim Compact Design: Fits in tight enclosures such as doorbell or slim cameras
USB2.0 Plug-and-Play: Easy to integrate with multiple OS platforms
Specification
|
Model No |
SNS-2MP-OV2710-V1.0 |
|
Sensor |
1/2.7'' Omnivision OV2710 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5856µm x 3276µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 80° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
55MM x 19MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
