Starlight Night Vision 1080P HD Camera Module SC2210
|
Module Number |
SNS-GM1052-V1.0 |
Sensor |
1/1.8" |
|
Resolution |
1920(H)X1080(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
WDR |
Products Description

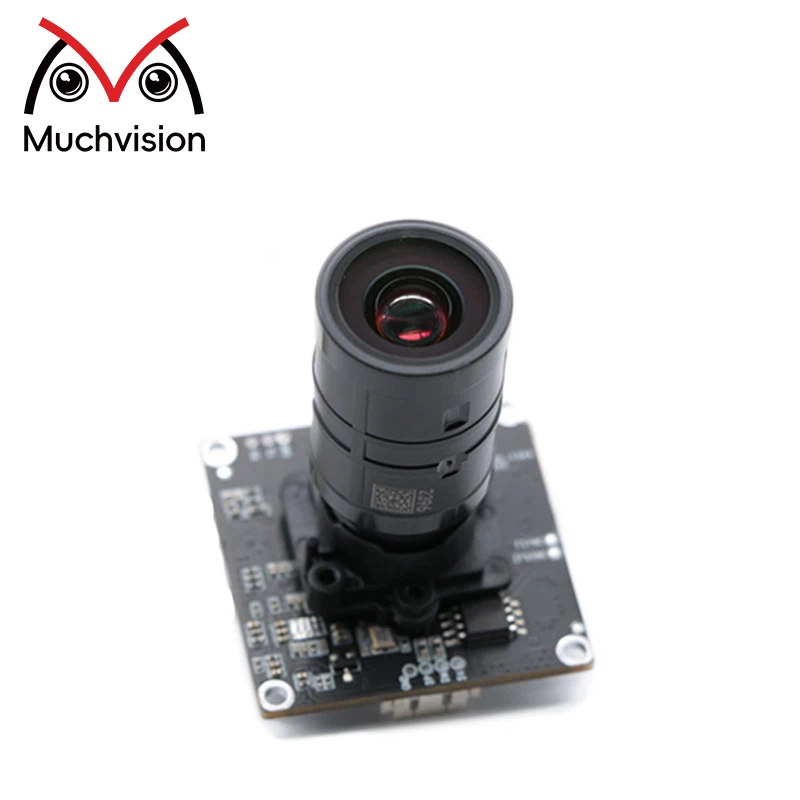

This USB camera module features a 1/1.8-inch SC2210 black optical sensor, providing 1920x1080 Full HD resolution video.
The module incorporates starlight-level low-light technology, capturing clear and low-noise images even in dark environments. Its large 4.0μm pixel size enhances light sensitivity and image quality.
Equipped with triple-exposure wide dynamic range (WDR), the camera captures clear details in both bright and dark areas, ideal for security, industrial vision, and video conferencing.
The module offers an ultra-wide 180° panoramic FOV, supporting broad scene coverage. It is USB-powered and compatible with Windows, Linux, MacOS, and Android systems.
Highlights
1/1.8-inch SC2210 black optical sensor with superior night vision performance
1920x1080 Full HD resolution video output
Triple-exposure WDR technology for enhanced dynamic range
Ultra-wide 180° panoramic field of view for broad scene coverage
Next-generation starlight upgrade technology for ultra-low light imaging
Specification
|
Sensor |
1/1.8" |
|
Most effective pixels |
1920(H)X1080(V) |
|
Pixel Size |
4.0μm x 4.0μm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TdB |
|
Dynamic range |
TdB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
FOV:D180° H180°V180°F/N(2.0) |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Storage temperature |
-20～80℃ |
|
Operating temperature |
0～60℃ |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
